The plant, equipped with our equipment, successfully produces biofuels

Setting up your own line or plant for the production of fuel pellets will be beneficial if there is constant access to a sufficient amount of wood waste. The plant will pay off if at least 4 tons of raw wood are processed per hour, which yields 2 tons of wood waste. This amount of waste is enough to consider the possibility of installing a wood waste recycling line. As a result, biofuels will help to recoup costs and bring profit.

About 5 bulk cubic meters of sawdust are needed to produce one ton of pellets. Fuel pellets are environmentally friendly fuels with an ash content of no more than 0.4% and a moisture content of 7.9%. When burning pellets, exactly as much CO2 is released into the atmosphere as was absorbed by the plant during growth.

Fuel pellets differ from ordinary wood in high dryness (8-10% moisture versus 30-50% in firewood) and a higher density — about one and a half times. These qualities provide a high calorific value compared to wood chips or firewood — when burning a ton of pellets, the calorific value is 19270 kJ/kg /4603 kcal / kg, which is one and a half times more than that of conventional firewood, peat

The production line includes a stock warehouse, a crushing site, a drying site, a granulation site, a cooling and sieving site, a packaging site and an automated control system for each production process.

Acceptance site

The warehouse for receiving raw materials is equipped with a system that prevents the freezing of the material and the freezing of the pushers to the bottom of the warehouse. From the stocker warehouse, the raw materials are fed to a disc separator, which separates large impurities from the conditioned chips and sawdust.

Crushing area

Necessary equipment: high-efficiency wood shredder, hammer crusher of good quality with a certain capacity. The size of the raw material before loading into the granulator should not exceed 5 mm, so in order to reduce the size to a minimum, the raw material must be passed through a hammer crusher. The size at the outlet is controlled by the holes of the sieves, which can be from 1 mm to 8 mm. Hammer crushers have a wide range of sieves and can be used for almost any raw material, equipped with an energy-saving rotor, a body made of wear-resistant material. Optimal performance with low maintenance costs.

Drying area

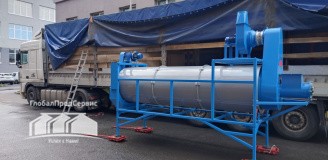

The wet and crushed raw materials are sent to the drying complex via a scraper conveyor to a drum dryer. A pneumatically displaced hot air stream ensures uniform drying of the product, carried out by convection to a residual humidity of 10%.

For the production of high quality wood fuel pellets, drying is one of the most important parts to pay attention to. Raw materials with high humidity can lead to easy granulation, and materials with low humidity can cause granulation problems.

If you are planning to build an integrated pellet plant, an industrial drum dryer with a rotating drum is the best choice.

Granulation area

After air separation, wood flour is fed to a direct screw conveyor into a granulator hopper, in which a mixer is installed to adjust humidity. Next, the dry raw materials enter the pressing and granulation section. After the humidity has been adjusted in the mixer, the raw material enters the granulator press.

Pelletizing is a key process in a pellet production plant. In a granulator press under high pressure and temperature, as a result of compression and friction, thermal energy is generated, softening resins and lignin (they are a natural adhesive material). The raw material is pressed through a special matrix, passing through which the wood dust is glued into granules of cylindrical shape, of a given length and shape - the pelletization process is underway.

Cooling and screening area

Cooling is an important part of the production process of high-quality wood pellets. It is necessary for the curing of finished pellets - they are hot and plastic, easily deformable until completely cooled. A cooler is used to cool the pellets before packaging and storage. Due to the friction that occurs in the granulator matrix, additional heat is generated in the granules. The residence time in the cooler and the diameter of the wood pellets are crucial for determining the size of the cooler.

The sieving system is designed to remove the powder from the granules. After the molding is completed, the fuel is cooled to room temperature; at this time, the lignin hardens, which increases the strength of the granules. Then they are sieved to separate the noncondication and make the material homogeneous. The dropout is recycled.

Packing and storage area

Required equipment: automatic packaging machine.

Packaging is the latest process for the production of pellets from sawdust. At the end of the production process, to ensure ease of use, transportation and attractive appearance, the granules are packaged in plastic bags, so the granules are less susceptible to abrasion during delivery. Sorted products are packaged in bags of 15-20 kg or in big bags of 500-1000 kg.

• The area of the room

To place the equipment of the line, warehouses for receiving and storing raw materials, finished products, a packing area of at least 600 sq.m. will be required.

• Efficiency

Cost-effective production will be if at least 500-1000 kg/h of products are produced.

• Number of operators

Depending on the capacity of the plant, the line can be serviced by 1 to 3 people, plus from 1 to 2 drivers for the delivery of raw materials / delivery of products to the warehouse.

• Integrated engineering

You need a company that supplies a complete set of technological equipment from the preparation stage to the storage of finished products, including acceptance, cleaning, crushing of wet raw materials, drying, crushing of dry raw materials, granulation, cooling, packaging, an automated control system with an industrial computer.

Globalprodservice specialists carry out complex engineering -they carry out design preparation, supply, installation, supervision, commissioning of complete plants, provide engineering and technical services, service, warranty and post-warranty service.

Advantages of our equipment:

• Wear-resistant and nature-saving
• Safety of operation
• Trouble-free operation
• Closed-loop waste-free technology
• Ease of operation
• Automatic control

The selection of equipment is carried out in accordance with the type of raw materials and the chosen pellet manufacturing technology. It is optimal to purchase a ready-made line, rather than separate equipment. Globalprodservice equips turnkey plants.

Our plants of various capacities are successfully operating in the Kletsky, Petrikovsky, Berezinsky districts.
