Primary oil storage tank GL-TA
Own production
Appointment
Designed for accumulating and mixing vegetable oil or other non-aggressive media in relation to carbon steel.
Raw materials and products:vegetable oil or other.
Characteristic

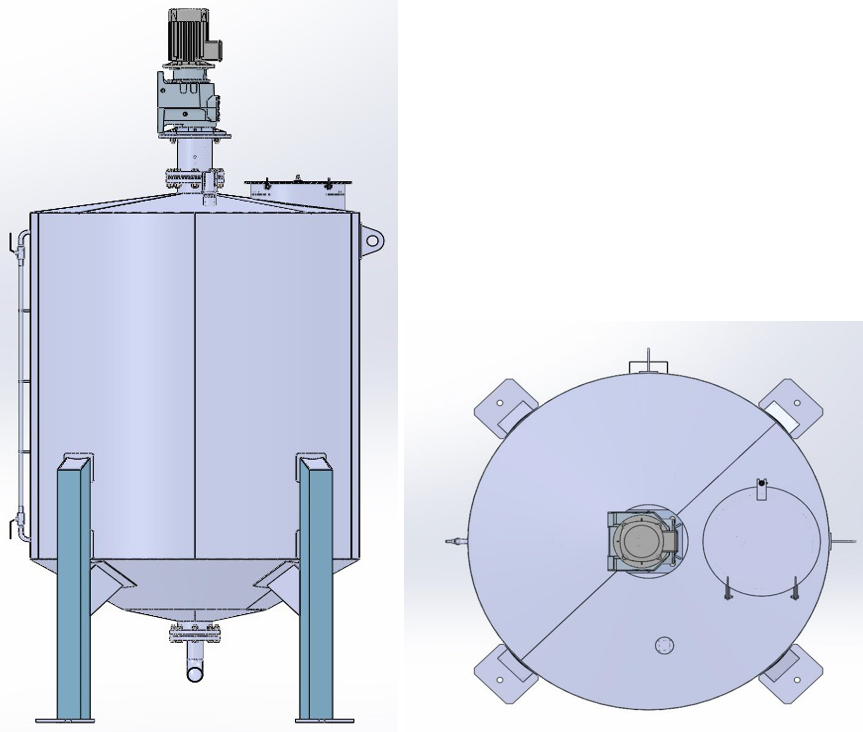

Oil container with stirrer GL-TA is a vertical welded vessel with stirrer.
|
Parameter name |
Parameter value |
|
Geometric volume, m3, not less |
5.3 |
|
Mixer rotation speed, rpm |
21 |
|
Installed power of the gear motor, kW |
2,2 |
|
Operating voltage, V |
400 |
|
Network frequency, Hz |
50 |
|
Weight of unfilled container, kg, no more |
640 |
|
Working pressure |
For filling |
|
Working environment |
Vegetable oil |
|
Operating temperature, ℃, no more |
95 |
|
Main material |
St3 GOST 380-2005 |
|

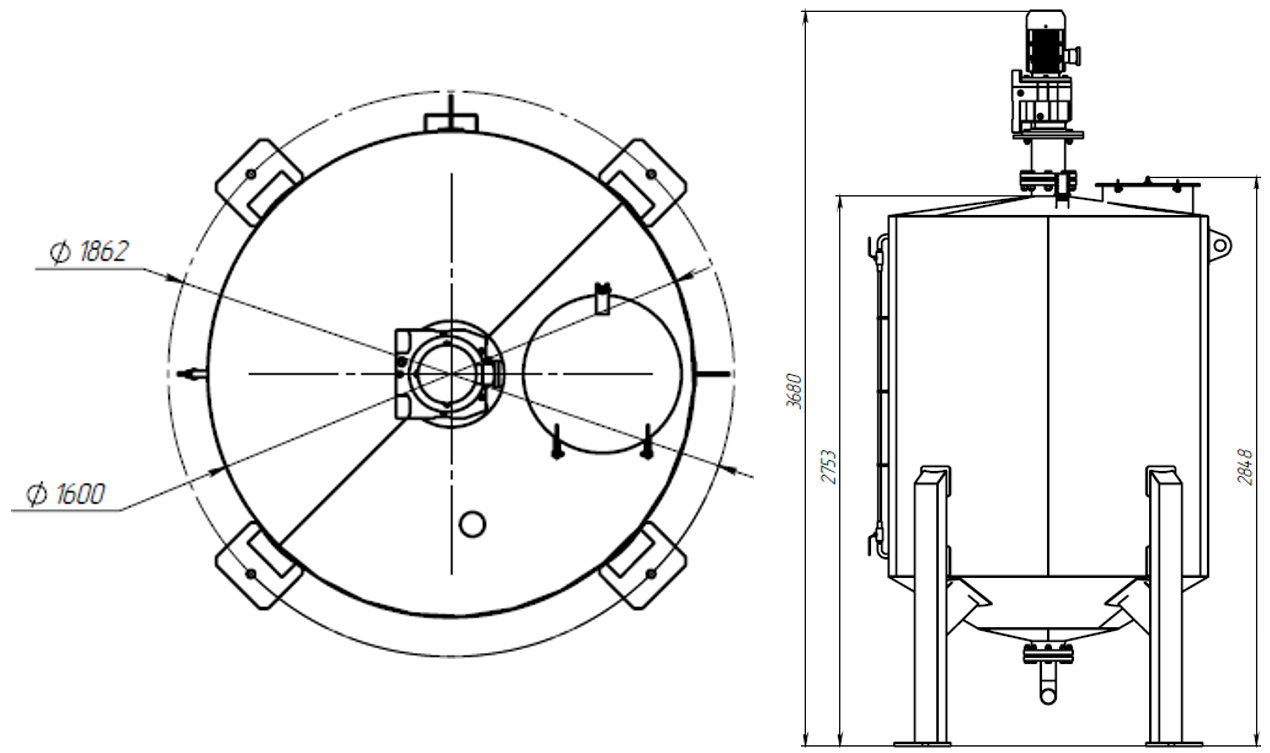

Dimensions HxWxL, mm |
4303х1982х1982 |
The principle of operation
Vegetable oil is supplied to the container, the mixer is driven into rotation through the coupling using a gear motor, which is installed in the upper part of the tank.
Advantages
- Simple and easy to maintain;
- For smooth and continuous operation;
- Warranty - 24 months.
Designed for accumulating and mixing vegetable oil or other non-aggressive media in relation to carbon steel.
Raw materials and products:vegetable oil or other.
Oil container with stirrer GL-TA is a vertical welded vessel with stirrer.
|
Parameter name |
Parameter value |
|
Geometric volume, m3, not less |
5.3 |
|
Mixer rotation speed, rpm |
21 |
|
Installed power of the gear motor, kW |
2,2 |
|
Operating voltage, V |
400 |
|
Network frequency, Hz |
50 |
|
Weight of unfilled container, kg, no more |
640 |
|
Working pressure |
For filling |
|
Working environment |
Vegetable oil |
|
Operating temperature, ℃, no more |
95 |
|
Main material |
St3 GOST 380-2005 |
|
Dimensions HxWxL, mm |
4303х1982х1982 |
Vegetable oil is supplied to the container, the mixer is driven into rotation through the coupling using a gear motor, which is installed in the upper part of the tank.
- Simple and easy to maintain;
- For smooth and continuous operation;
- Warranty - 24 months.
Advantages of the equipment
Robust construction
Stable and reliable production
Maximum efficiency
Easy to operate
Easy maintenance
It will save space
Low maintenance costs
Long service life
