Grain separator

Appointment

The separator is designed to clean grain crops from large and small impurities. Different levels of purification are achieved using appropriate sieves.

Characteristic

• The electrical equipment of the separator is designed to operate from an alternating current mains voltage of 380/220 V with a frequency of 50 Hz.
• Operating temperature range from minus 30 °C to plus 40 °C with relative air humidity up to 80%.
• The first start should be carried out without load for 10-15 minutes.
• When restarting after shutdown, the sieve body must be completely stopped to prevent resonance.

Device

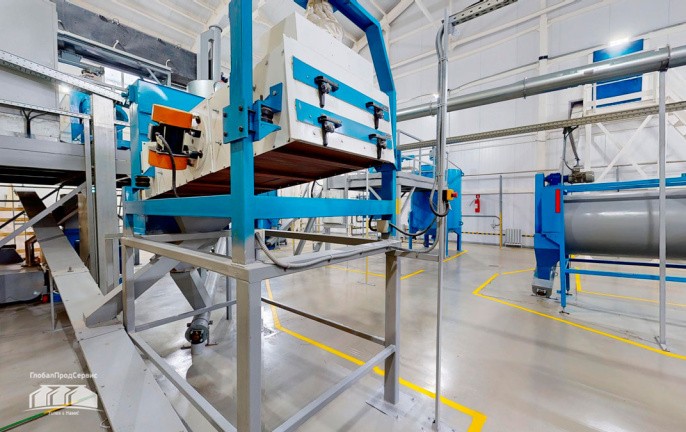

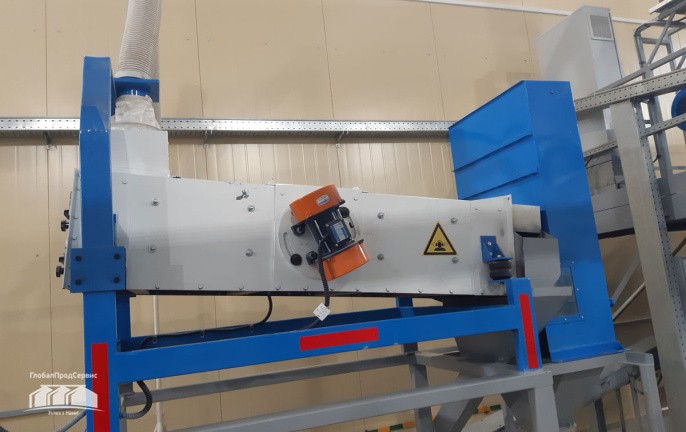

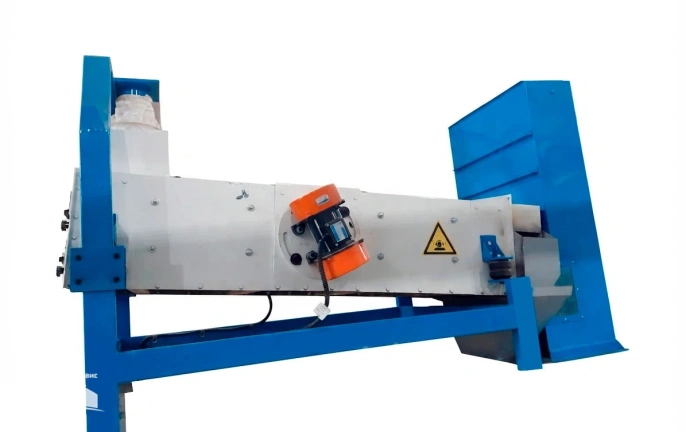

The separator consists of a feeding hopper, a frame, a sieve body, and a transfer device. The separator is a combination of sieves and has different movement paths. The speed of the cage can be changed by changing the position of the V-belt on the pulley.

The principle of operation

The separator is a combination of sieves and has different trajectories of movement. Separation is achieved by rotation and reciprocation using aerodynamic, gravitational and vibration properties to separate and classify grain according to specific parameters.

The process of grain cleaning in the separator occurs as follows:

1. The grain mixture evenly enters the sieve frame through the feed hopper. The upper sieve screens out large impurities. They are unloaded through the side exit, and the grain crops spill onto the lower sieve.
2. On the lower sieve, the mixture is separated into small impurities and grain with light impurities.
3. Small impurities are removed through the lower outlet.
4. At the outlet of the separator, a mixture of grain and light impurities enters the suction separating channel, light impurities are sucked out, and clean grain is poured out through the lower part.

Advantages

• High cleaning efficiency: separators are capable of removing up to 99% of impurities and defective grains, which allows you to obtain high-quality grain for sowing.
• Saving time and resources: separators allow you to quickly and effectively clean grain from impurities, which reduces processing time and reduces the cost of manual labor.
• Ability to adjust cleaning parameters: Most modern separators have the ability to configure various cleaning parameters, which allows you to adapt the equipment to different types of grain and operating conditions.
• Ease of use and maintenance: the separators have a simple design and intuitive interface, which makes them easy to use and maintain.
• Reliability and durability: separators are made of durable materials and have a reliable design, which ensures their durability and stable operation over a long period of time.
• For smooth and continuous operation.
